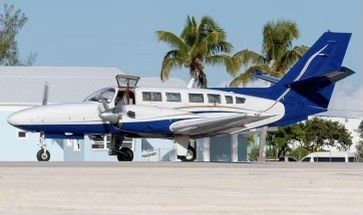

Reims-Cessna F406

  • Agape Flights Agape Flights uses the Reims/Cessna F406 “Caravan II.”
  • N17CK was built in 1985 by the French manufacturer Reims Aviation (Reims/Cessna F406).
  • The Reims/Cessna F406 is certified for day or night flight, operating under visual or instrument flight rules.

  • Weights and Loadings

    Max. Ramp Weight: 9,435
    Max Takeoff Weight: 9,360
    Empty Weight: 5,304 (cargo); 5,424 (8 passenger)
    Useful Load: 4,056 (cargo); 3,936 (8 passenger)
    Max Agape Cargo Load: 2,000 lbs
    Fuel Capacity: 475 gallons
    Wing Loading: 37.03 lbs per square foot
    Power Loading: 9.36 lbs/HP

  • Performance

    Stall Speed Vso: 75 kias
    Vfe: 180 kias
    Vle/lo: 180 kias
    Vmo: 229 kias
    Rate of Climb: 1,500 fpm
    Takeoff Ground Roll: 1,400 feet
    Max Ceiling: 30,000 feet
    Cruise Performance: 230 knots TAS

  • Range and Endurance

    At 230 ground speed, fuel consumption of 500 pounds per hour, range is 6.3 hours or
    1,450 nautical miles
    Powerplant: Pratt and Whitney PT6A-121
    Takeoff power @ 1,900 RPM: 500 shp
    Max continuous power: 500 shp

  • Propeller

    Constant speed, fully feathering, reversible
    Diameter: 93 inches
    Prop tip clearance: 10.2 inches

  • Fuselage

    Aft Cabin Width: 56.0 inches
    Aft Cabin Height: 51.0 inches
    Aft Cabin Length: 164.64 inches
    Rear Cargo Door Width: 49 inches
    Height: 47 inches

  • Dimensions

    Width: 49.5 feet
    Length: 39.02 feet
    Height: 13.15 feet
